Explore Esco Couplings, a global leader in gear and disc couplings

Innovative coupling solutions for the industrial world
Esco Couplings

Power Gear Technology is proud to partner with Esco, offering their advanced coupling solutions to our valued customers.
Esco Couplings is a globally recognized leader in the development, design, and manufacturing of gear and disc couplings for the industrial market. With over 60 years of expertise, Esco has become synonymous with top-quality couplings and innovative solutions. Their commitment to R&D ensures that every project benefits from the perfect solution, delivered efficiently through their production sites in Belgium, China, and India. Supported by subsidiaries and partners worldwide, Esco provides tailored advice, competitive prices, and exceptional delivery times.

Esco Logo

Esco Couplings

Globally recognized leader in gear and disc couplings, offering top-quality and innovative industrial solutions.

Visit Esco Group

EscoGear Series

Special Properties

✓

Multicrown gearing

✓

Homogeneous torque transmission

✓

Reduced backlash

✓

Optimum max. torque / max. misalignment ratio

✓

Optimum flange connection

Applications

✓

Heavy-duty and industrial applications

✓

Pumps, turbines, generators, compressors

✓

Conveyors and roller conveyors

✓

Cranes and lifting devices

✓

Textile, paper machines, maritime applications

Escogear F

Escogear F

Most robust solution ✓
Split housing (AGMA compliant) ✓
Multicrown gearing ✓
Turnable hubs ✓
Single and double cardanic, rigid ✓
Vertical and horizontal installation ✓
28 sizes ✓
Max Torque* 10,080,000 Nm
Max Bore Ø* 1,130 mm
Escogear C & C-M

Escogear C & C-M

Most compact solution ✓
Continuous sleeve ✓
Multicrown gearing (C-M) ✓
Vertical and horizontal installation ✓
19 sizes ✓
Max Torque* 1,120,000 Nm
Max Bore Ø* 470 mm
Escogear N

Escogear N

Most economical solution ✓
Single internally geared sleeve ✓
Stamped covers ✓
Installation without special tools ✓
4 sizes ✓
Max Torque* 2,000 Nm
Max Bore Ø* 65 mm

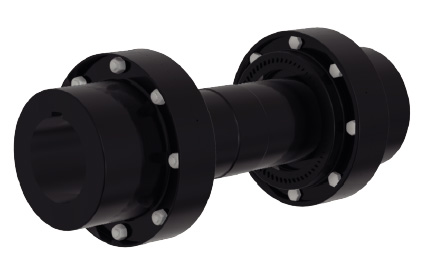

Escogear High-Speed

Escogear High-Speed

Individual solution ✓
Weight-optimized ✓
High balancing quality ✓
Nitrided gearing (opt.) ✓
API 671 compliant (opt.) ✓
Continuous oil or grease lubrication ✓
Max Torque* Individual
Max Bore Ø* Individual
* Data dependent on size and design / special designs on request

Escodisc Series

Special Properties

✓

Optimized shaped discs

✓

AISI 301 full hard stainless-steel discs

✓

Optimal power transmission

✓

Designed, calculated, and tested for infinite life

✓

Operation in dirty, corrosive environments

Applications

✓

Petrochemicals and industrial applications

✓

Pumps, turbines, generators, compressors

✓

Conveyors, rolling mills

✓

Textile, paper machines, test benches

✓

Maritime applications

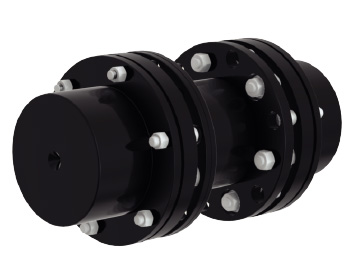

Escodisc DPU

Escodisc DPU

High torques / misalignments ✓
API 610 compliant ✓
Anti-fly (optional) ✓
Non-sparking (optional) ✓
Sizes 18
Max Torque* 260,000 Nm
Max Bore Ø* 400 mm

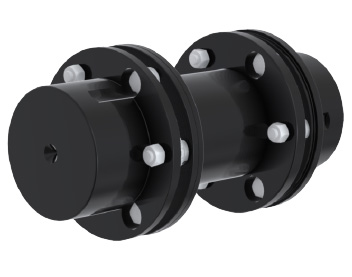

Escodisc DMU

Escodisc DMU

All-purpose solution ✓
API 610 compliant ✓
Sizes 17
Max Torque* 260,000 Nm
Max Bore Ø* 370 mm
Escodisc DMUCC

Escodisc DMUCC

Short shaft distances ✓
Split spacer ✓
Sizes 17
Max Torque* 260,000 Nm
Max Bore Ø* 350 mm

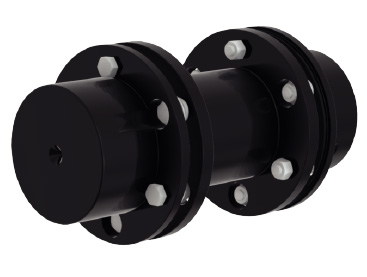

Escodisc DLC

Escodisc DLC

Most economical solution ✓
Single disc ✓
Sizes 7
Max Torque* 1,600 Nm
Max Bore Ø* 105 mm

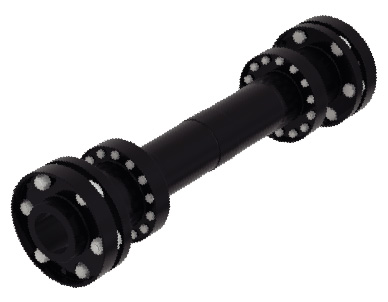

Escodisc High-Speed

Escodisc High-Speed

Individual solution ✓
Weight-optimized ✓
Anti-fly (optional) ✓
Max Torque* Individual
Max Bore Ø* Individual
* Data dependent on size and design / special designs on request

Escofil Series

Special Properties

✓

Lubrication-free coupling

✓

Light weight

✓

High strength

✓

Chemical resistance

✓

Low coefficient of thermal expansion

✓

Reduced vibrations

✓

Reduced load on bearings

✓

High misalignment capacity

Applications

✓

Cooling towers

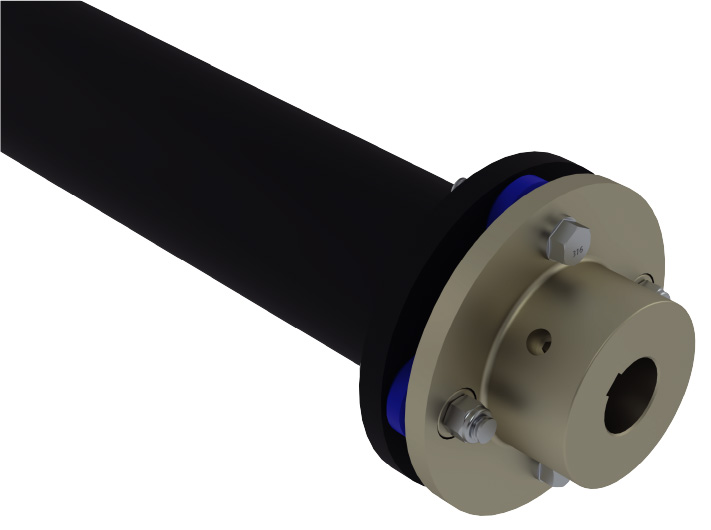

Escofil

Escofil

Hubs, fasteners made of stainless steel ✓
Floating spacer made of carbon or glass fibres ✓
Flexible elements made from composite ✓
Max SES (DBSE): 6,299 mm ✓
Sizes 5
Max Torque* 3,672 Nm
Max Bore Ø* 130 mm
* Data dependent on size and design / special designs on request

Esconyl- and Escoflex-Series

Special Properties

✓

Low-cost solution

✓

Compact design

✓

For small shaft distances

✓

Dry-running

✓

Easy installation, maintenance-free

✓

Vibration damping

✓

Electrically insulating

✓

Available from stock

Applications

✓

General industrial applications

✓

Food industry

✓

Textile industry

✓

Robotics

✓

Logistics

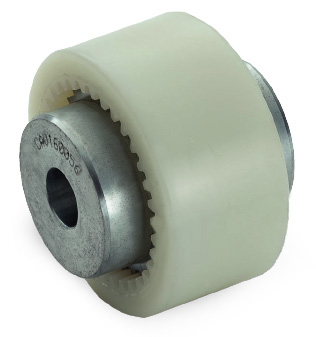

Esconyl A, B, C

Esconyl A, B, C

Non-lubricated gear type coupling ✓
Temperature range up to 60°C ✓
Hubs made of Nylon, Zamak, or Steel ✓
Sizes 6
Max Torque* 300 Nm
Max Bore Ø* 60 mm

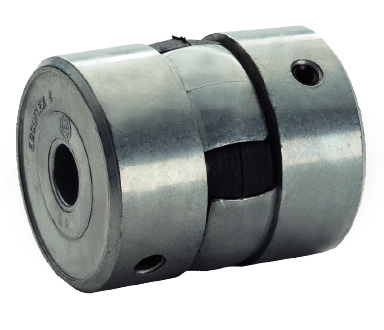

Escoflex S & R

Escoflex S & R

Very light coupling ✓
2 hubs with rubber inserts ✓
Hubs made of Zamak ✓
Sizes 4
Max Torque* 38 Nm
Max Bore Ø* 42 mm

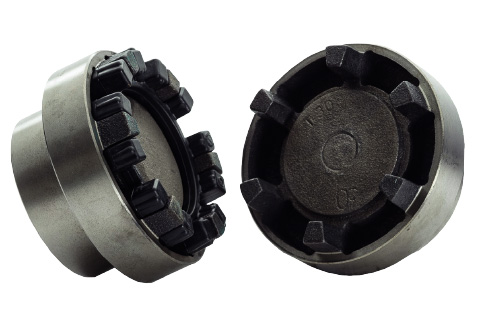

Escoflex A

Escoflex A

Compact design ✓
2 hubs with rubber inserts ✓
Hubs made of cast iron ✓
Sizes 12
Max Torque* 2,850 Nm
Max Bore Ø* 100 mm
* Data dependent on size and design / special designs on request
